Plug In Card and Rugged Systems
Amplicon Benelux offers a comprehensive range of commercial Off-The-Shelf (COTS) products based on open standards, like VPX, VME, XMC, CompactPCI and AMC. These products are designed for demanding military and industrial embedded applications where long life-cycles are required.
System solutions

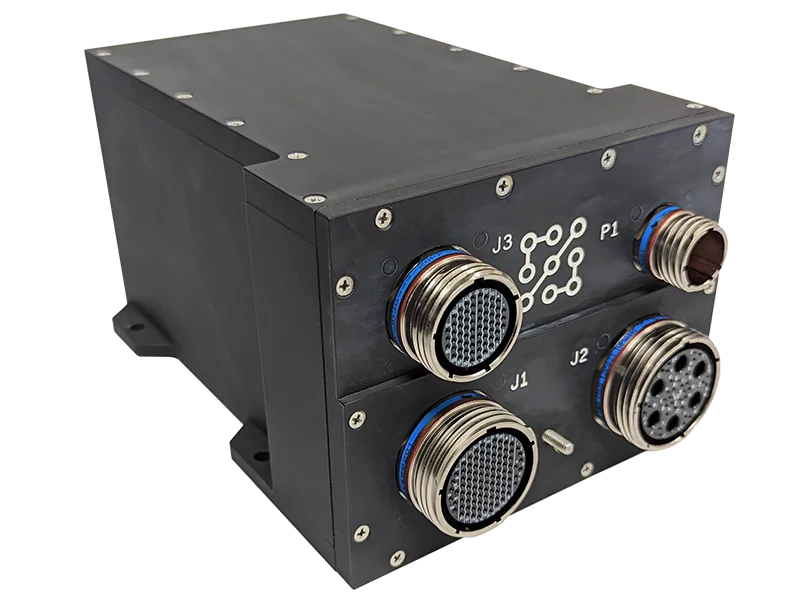

A range of systems and system integration services ranging from development systems and demonstrators to fully qualified rugged deployable systems can be provided.
These systems can be utilized for Mission Control, C5ISR, EW, Radar and other demanding military and industrial applications. These systems can include various CPU, GPGPU, FPGA, Networking, Storage, and IO combinations in SWaP-C packages. Our complete solutions reduce your risk and allow you to focus on what matters most.
Plug in Cards
VPX:
VPX products are widely deployed in military and aerospace environments and Concurrent Technologies supplies a range of single board computers, switches, storage, XMC carriers as well as development systems.
Rugged variants are usually available based on a rigorous testing cycle to ensure reliability despite severe operating temperatures, shock, vibration, altitude and other environmental factors.
VME:
VME continues to be a well supported and widely installed bus architecture particularly in the defense market.
We offer a choice of Intel® processor-based VME boards designed for long life-cycle applications.
These high performance processor boards are complemented by a choice of switch fabric boards, XMC and PMC carriers, and mass storage modules.

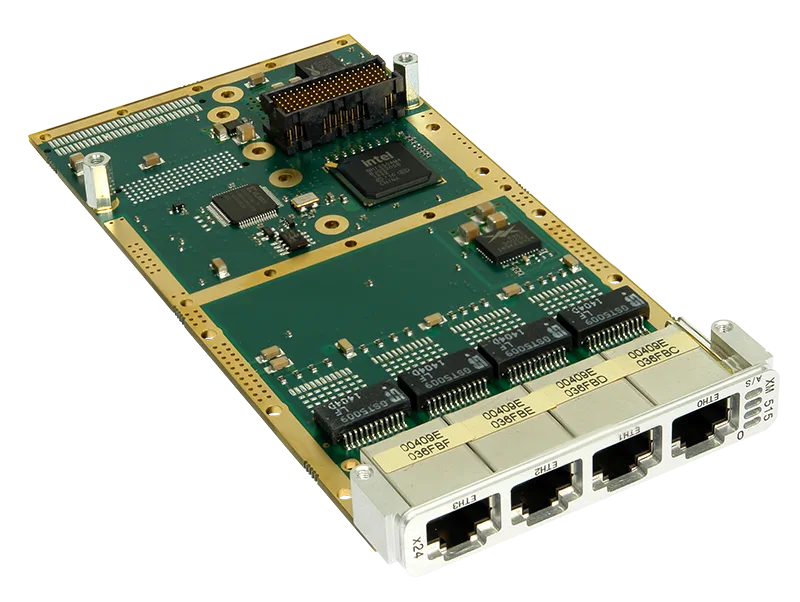

XMC:
XMC modules are an ideal way to add functionality to modular, open standards based systems.
These mezzanine modules are about the size of an iPhone® and are plugged into compatible slots on a host processor or carrier board to create the perfect mix of functionality for specific applications.
XMC builds upon the success of the PMC standard by ensuring a common form factor but with higher bandwidth communications using PCI Express® interconnects.

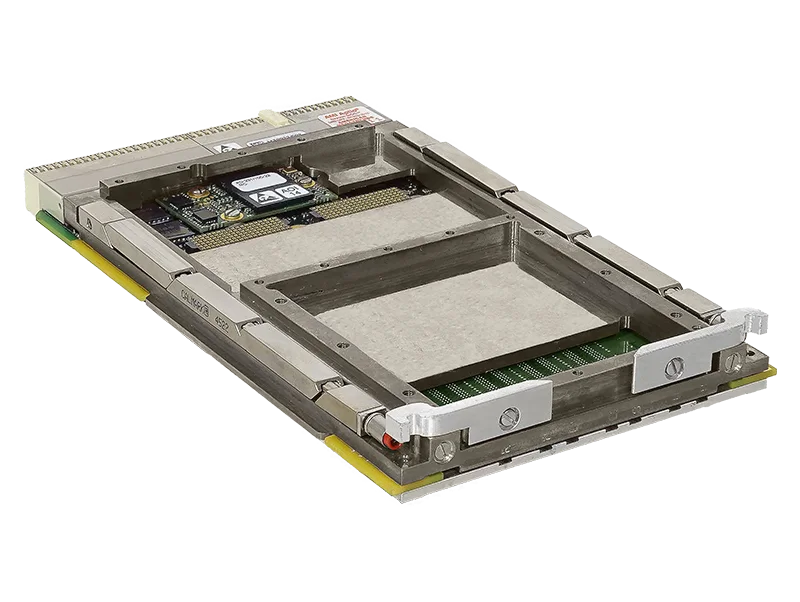

CompactPCI:
Our range of 6U CompactPCI ® products provides the user with a choice of high performance, highly integrated slot controllers and peripheral controllers.
These boards use Intel® processor platforms for ease of programming and widespread availability over long life-cycles. 3U CompactPCI ® (CPCI) continues to be a popular architecture, particularly for transportation and defense applications. We offer a range of commercial and ruggedized processor boards based on high performance Intel® Core™ processors, or the lower power Intel® Atom™ processors.
Product Highlights
1. Rhea – VME Processor Board

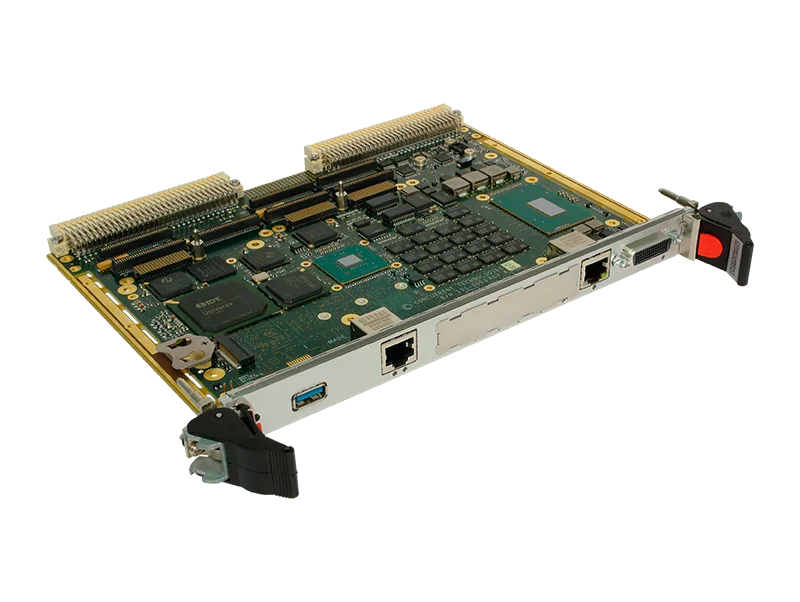

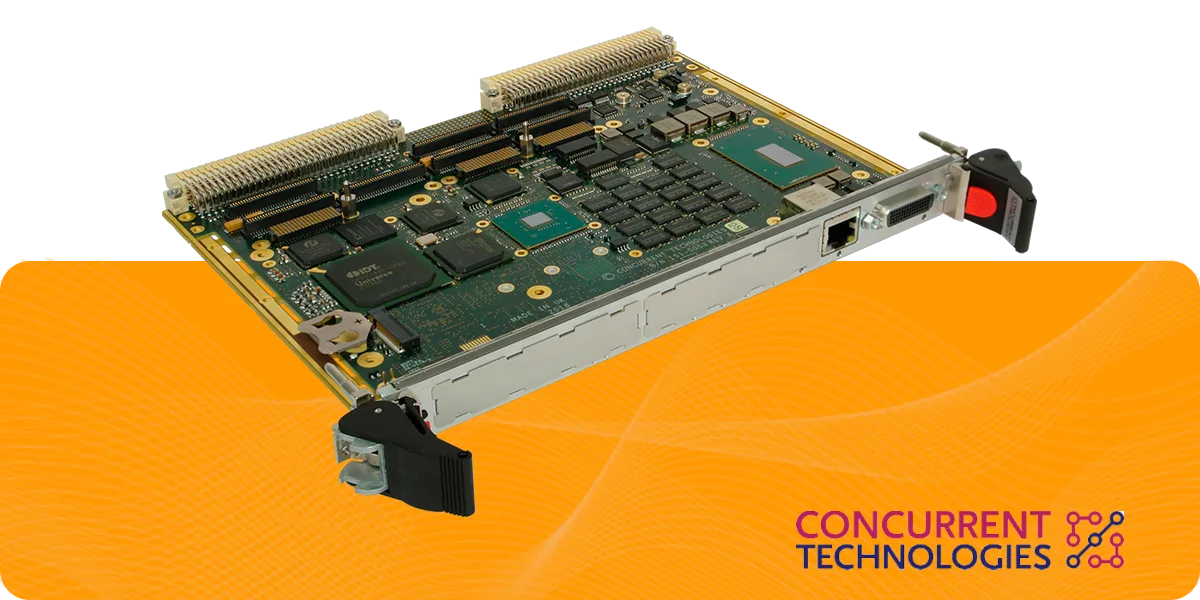

Concurrent Technologies “Rhea” VME board is a low power consumption VME board with a wide spread of I/O interfaces that has been designed for long life-cycle applications.
A brilliant replacement for existing systems with the latest generation processor from Intel®, we are continuing to provide an excellent VME option for our customers with a long life span for their wide variety of needs.
Both a 4-core and 2-core Atom x7000 processor options allow for both performance and power optimization, in addition 16 Gbytes DRAM with built in error correction allows for an increased memory integrity whilst ensuring precise data storage and enhancing reliability.
Easy to access controls with an I/O interface including SATA, USB, Ethernet, graphics, GPIO, audio and serial supporting a wide variety of legacy connections by default for a wide variety of needs at a glance.
Download Rhea – VME Processor Board Datasheet2. Hermes – VPX Processor Board

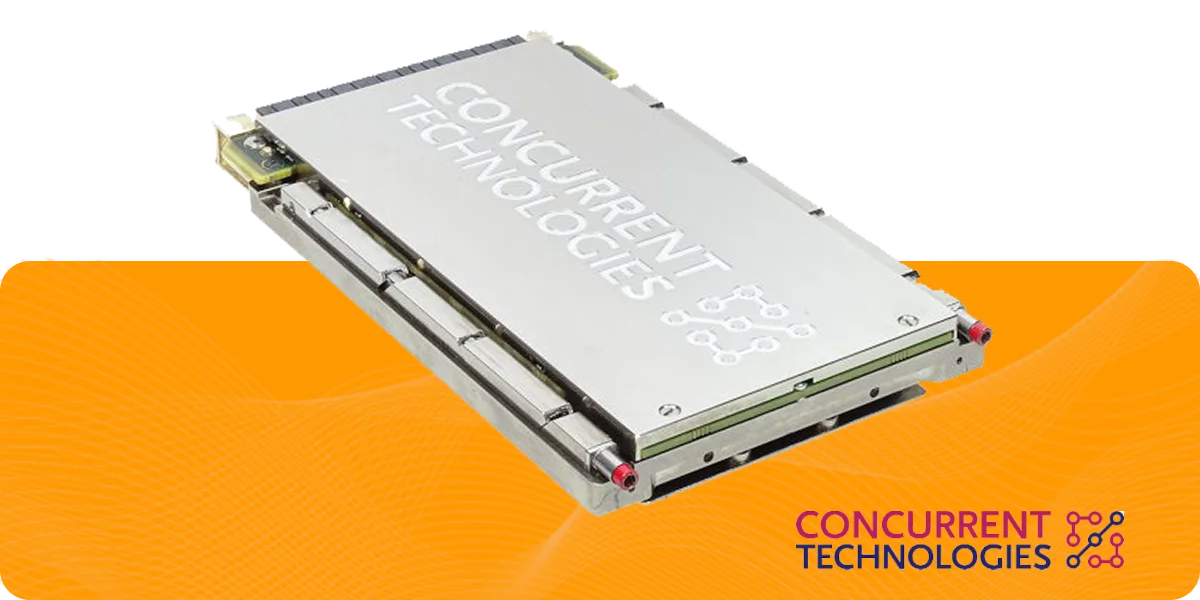

Concurrent Technologies Hermes is a rugged 3U VPX I/O Intensive Plug In Card based on the 13th Gen Intel® CoreTM i7-13800HRE Processor and designed in alignment with the SOSA™ Technical Standard for I/O intensive processor PICs.
Key Features:
• 14-core processor for high performance
• 100GBASE-KR4 Ethernet Data plane
• x4 Gen 4 PCI Express® Expansion plane for high-speed communication with adjacent board(s)
• XMC Site for additional I/O resources
• Optional M.2 module for storage with Write/Protect and Opal 2.0 compliance
Download Hermes – VPX Processor Board Datasheet3. Condor GR2S-A4500

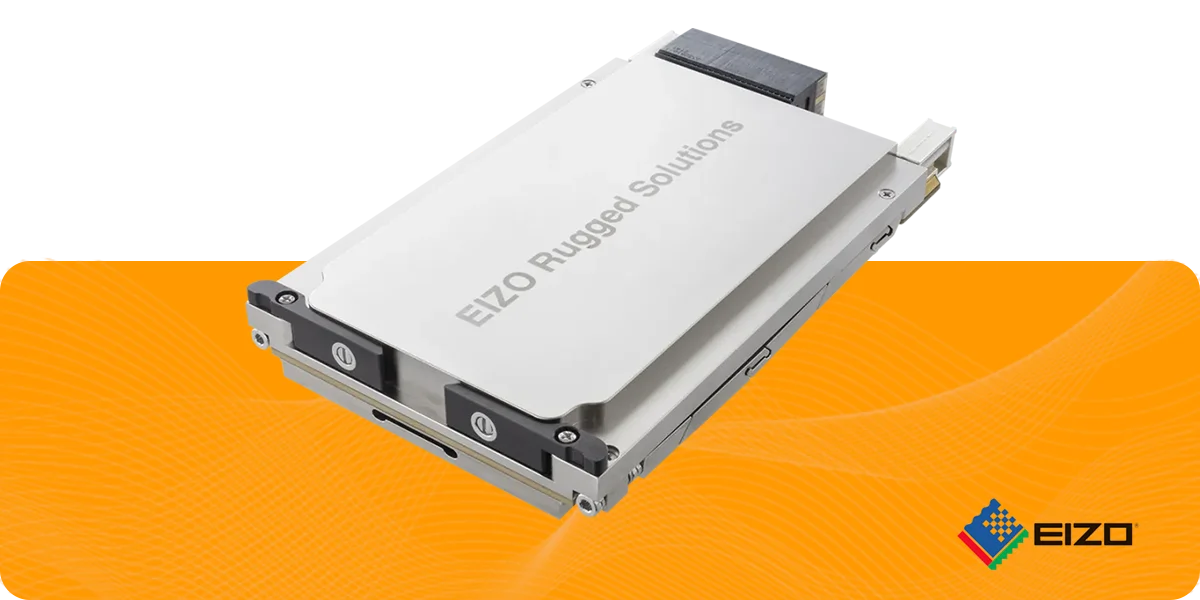

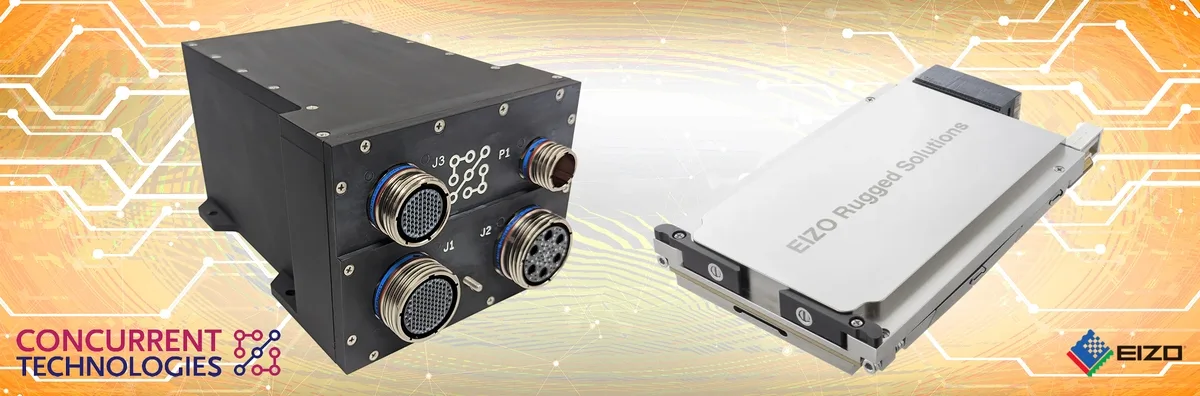

The Condor GR2S-A4500 is a rugged 3U OpenVPX video graphics and GPGPU processing card based on NVIDIA® Ampere architecture using the NVIDIA A4500 GPU. With 5,888 NVIDIA® CUDA® cores, 46 RT Cores (2nd generation), and 184 Tensor Cores (3rd generation), this SOSA-aligned 3U VPX solution is ideal for multi-intelligence applications involving low-latency data processing, EW (Electronic Warfare), DSP (Digital Signal Processing), AI-enabled target detection, Airborne ISR, and other autonomous sensor payloads.
Download Condor GR2S-A4500 Datasheet4. TR E8x/msd – 3U VPX Processor

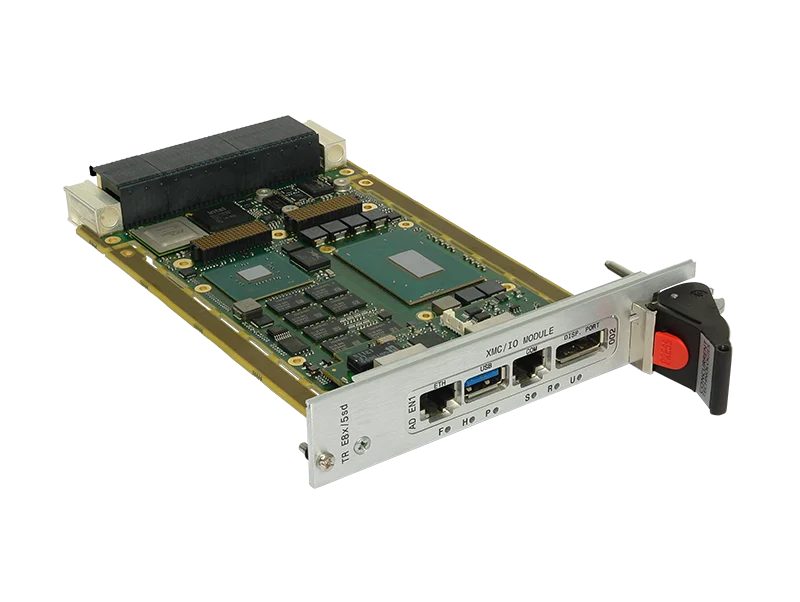

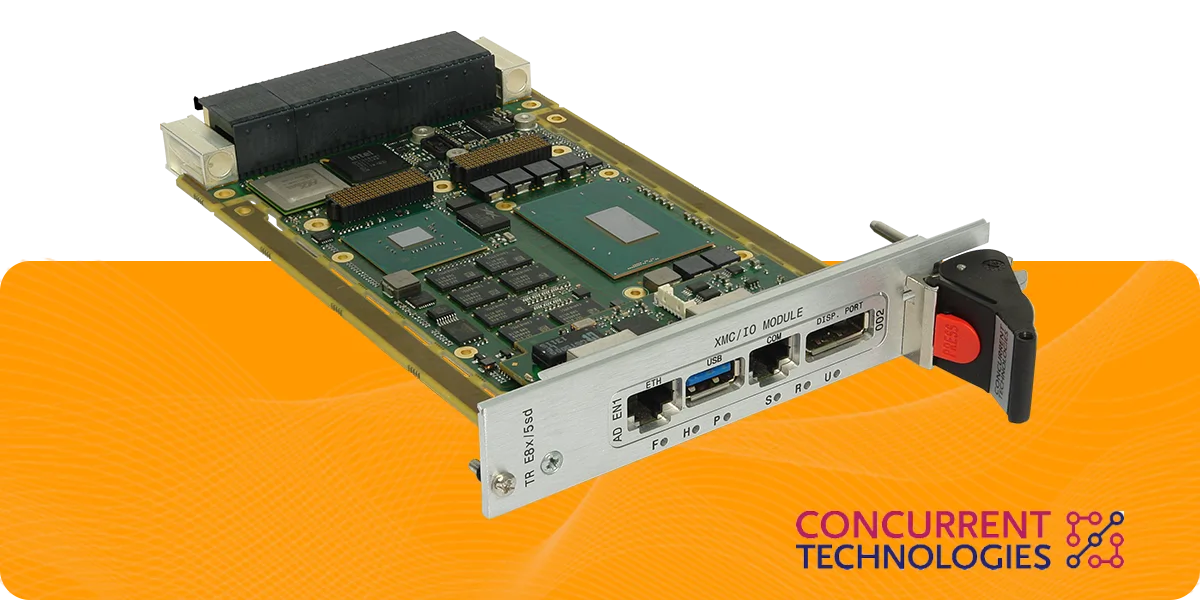

The Concurrent TechnologiesTR E8x/msd is a 3U VPX™ board based on the Intel® Xeon® processor E-2200 family, providing 6-core performance within the same Size, Weight and Power (SWaP) envelope compared to the prior TR E5x/msd board. A range of standard I/O interfaces are provided with an XMC expansion slot to add application specific I/O or an optional front panel module with DisplayPort, Ethernet, USB and serial connections. The TR E8x/msd supports a wide range of backplane profiles based on a PCI Express® (PCIe®) data plane fabric and optional PCIe expansion plane for flexible multi-board configurations. It is compliant with the VITA 46.11 system management specification and is particularly suited for command, control, communicate and compute applications.
Download TR E8x/msd – 3U VPX Processor Datasheet5. Helios – Rugged Vision System

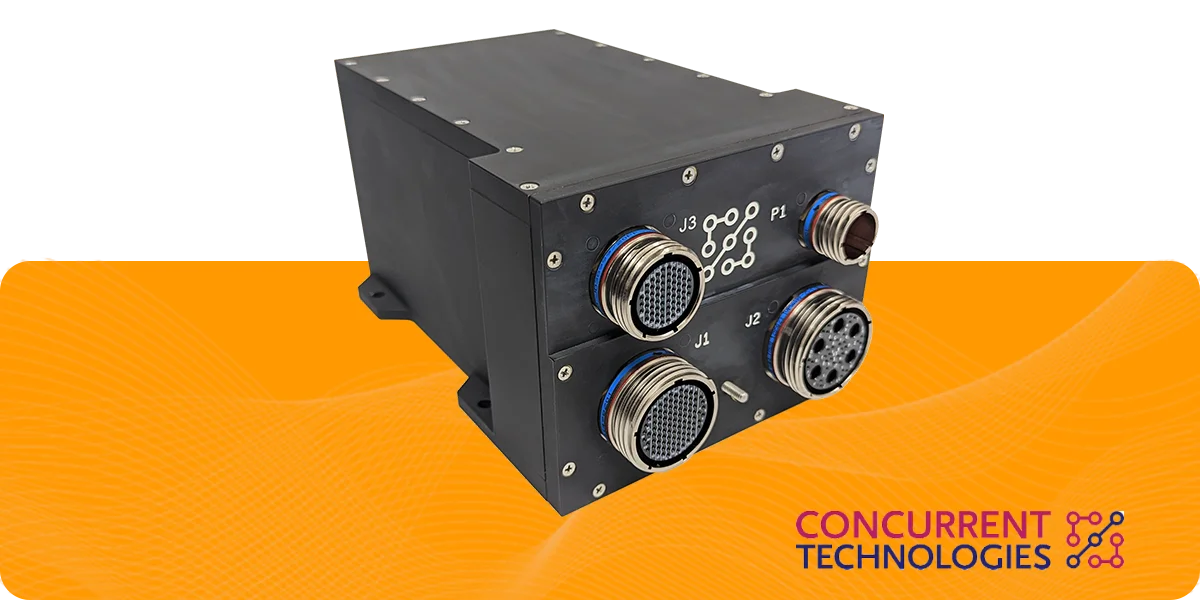

The Helios system from Concurrent Technologies is a rugged Commercial Off the Shelf (COTS) vision computer system optimized for Size, Weight, Power and Cost (SWaP-C) designed to operate in harsh environments. The system is designed in alignment with the SOSA™ specification. The system is based on an Intel® Core™ i7 processor complemented with outstanding graphics input and output capabilities. Options are available for a rich set of I/O and high-capacity removable
Key Features:
• Rugged Commercial Off the Shelf (COTS) Vision Computer System
• Optimised for Size, Weight, Power & Cost (SwaP-C)
• Designed to operate in harsh environments
• System based on an Intel® Core™ i7 processor
• Options for a rich set of I/O and high-capacity removable storage
Download Helios – Rugged Vision System DatasheetSOSA aligned VPX
Concurrent Technologies Inc. is proud to be a member of the Sensor Open Systems Architecture (SOSA™) consortium. The main aim of the SOSA architecture is to speed up and simplify the development and deployment of C4ISR systems based on open standards components.
These SOSA aligned systems are based on a multi purpose backplane that allows for easy reconfiguration of the VPX Plug In Cards (PICs) to create Electronic Warfare, Signal Intelligence, RADAR or other sensor based systems. Enabling future technology upgrades and reconfiguration are two key benefits of SOSA aligned solutions that will reduce the cost and extend the useful life of these platforms.
