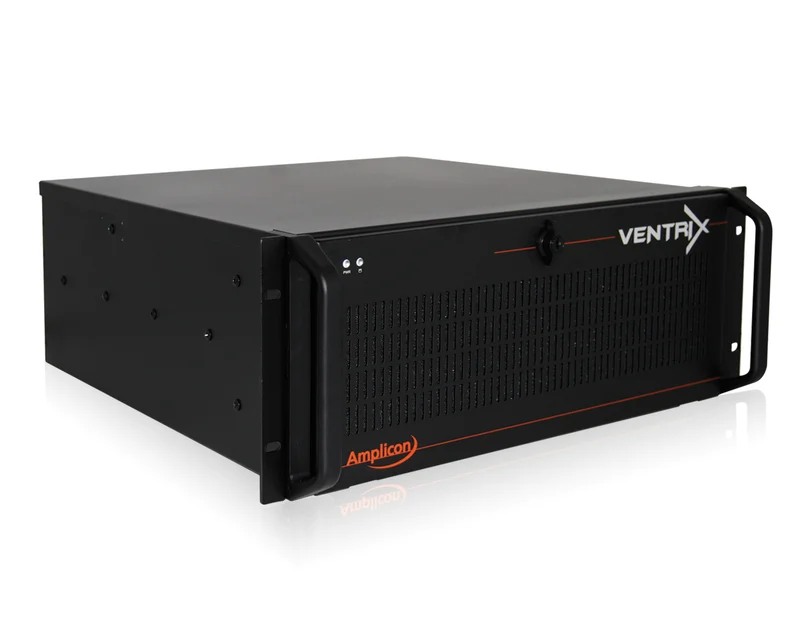

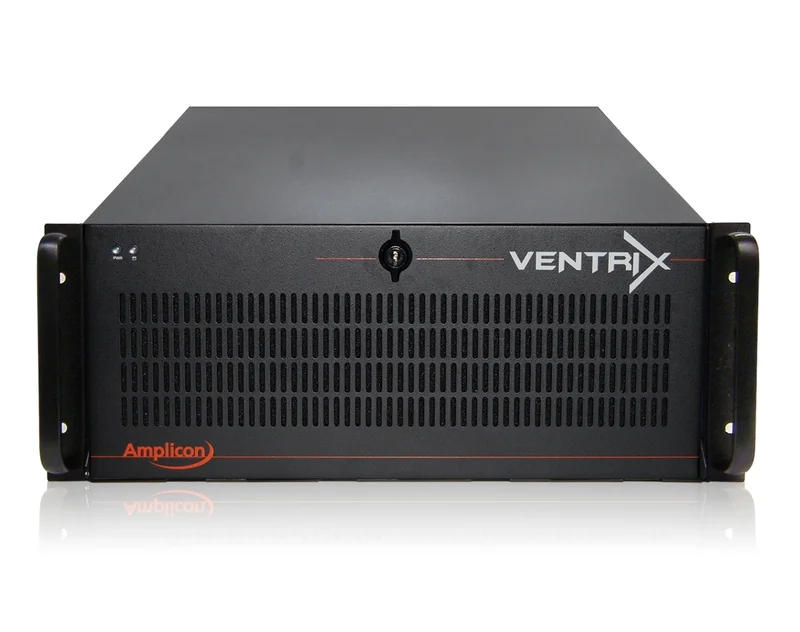

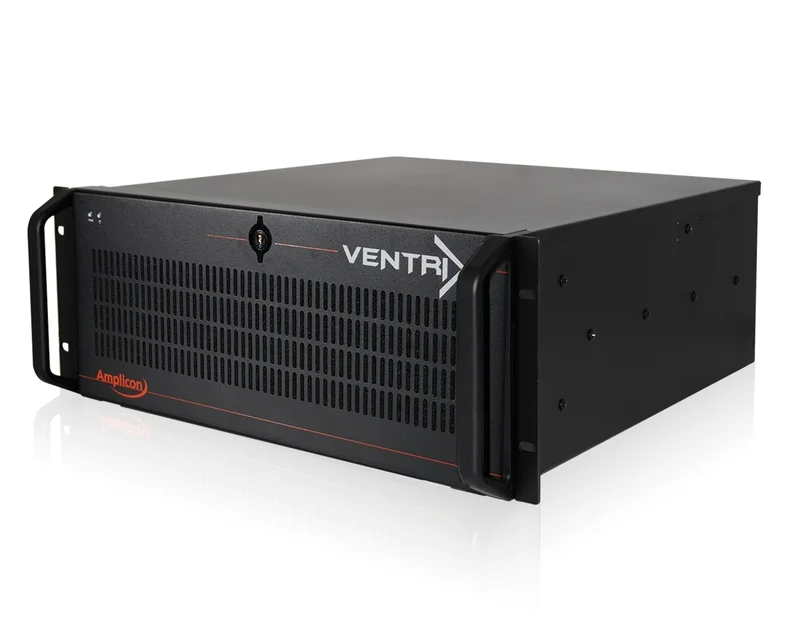

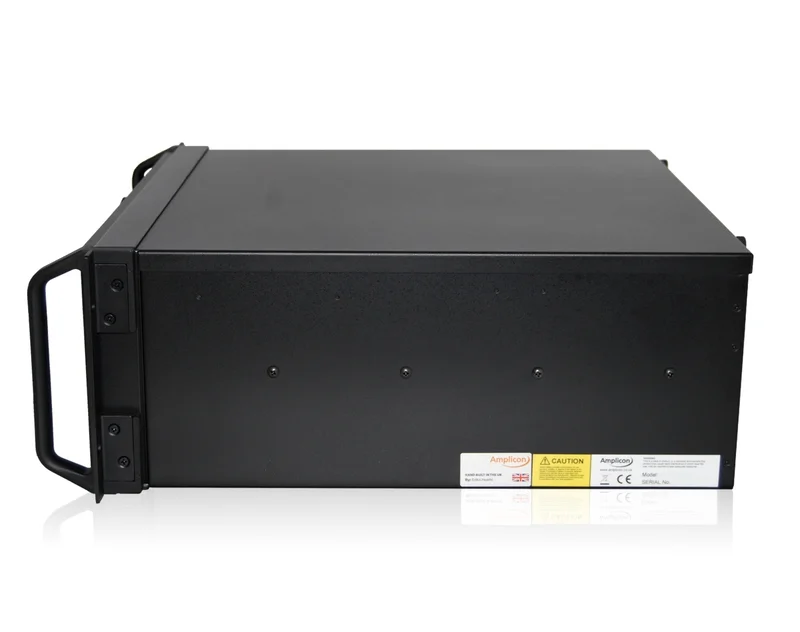

Amplicon Ventrix 4000 series

4U rackmount SBC based industrial computer. Core-i processing power.

Designed for 24/7 operation
Expansion for up to 10 plug-in cards
Quiet system fan set available (typically less than 39dBA)
Shock resistant drive bays
Electroplated for long-term protection against corrosion
3 year warranty package
5 to 15 year lifecycle

The Amplicon Ventrix 4000 series of 4U industrial rackmount computers combine reliability with generous system expansion.

Our Ventrix 4000 series accommodate up to 10 plug-in cards and support PCI and PCI Express buses. High quality cooling fans and an industrial grade power supply is fitted as standard to guarantee system stability. Our system reliability is backed by our unmatched 3 year warranty, with the first year onsite.

The Ventrix 4000 is highly flexible and capable of delivering, with options for custom branding and colour.

Amplicon's systems are able to offer 5~15 year life cycle.

6th, 8th and 12th generation Processor options available.

Memory: 2 GB; 4 GB; 8 GB
Chassis Size: 4 U
CPU: Core i3; Core i5; Core i7; Core I9
Chipset: Intel® Q67; Intel® R680E; Intel® B75; Intel® Q87; Intel® Q170; Intel® Q370
OS Support: Windows 11; Linux; VMWare ESXi; Windows 10; Windows 10 IoT; Windows 7; Windows Emb Std 7; Windows XP
Memory Type: DDR3; DDR4; DDR5
Expansion: PCI; PCIe; M.2
CPU Generation: 3rd (Ivy Bridge); 4th (Haswell); 6th (Skylake); 8th (Coffee Lake); 12th (Alder Lake)
Max Memory: 16 GB; 32 GB; 64 GB; 128 GB
Storage: 512GB SSD; 1TB HDD
CPU Cores (Physical): 4; 6; 8
Max Operating Temperature: 50 °C; 60 °C
Mounting: Rack
Chassis depth: Standard depth
Brand: Ventrix
