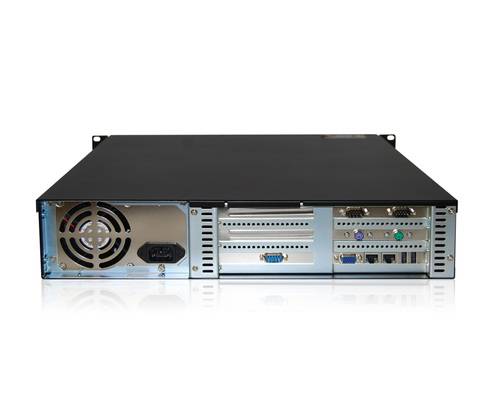

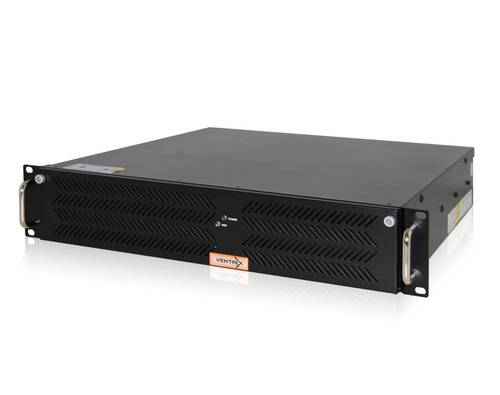

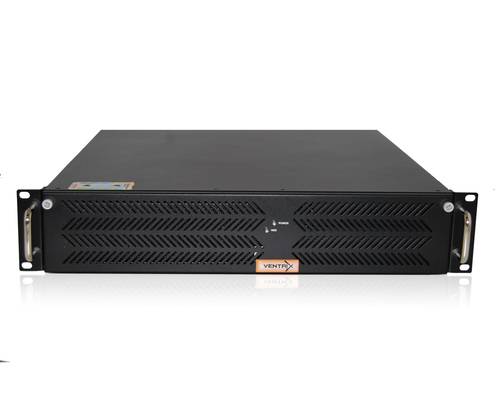

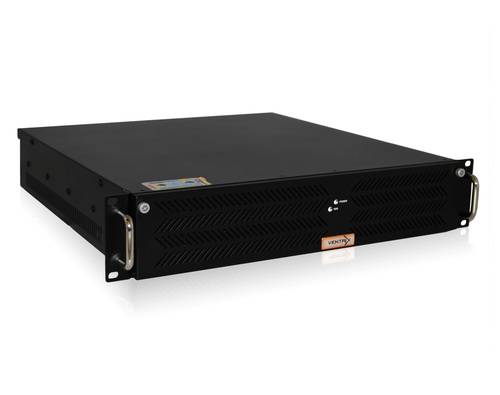

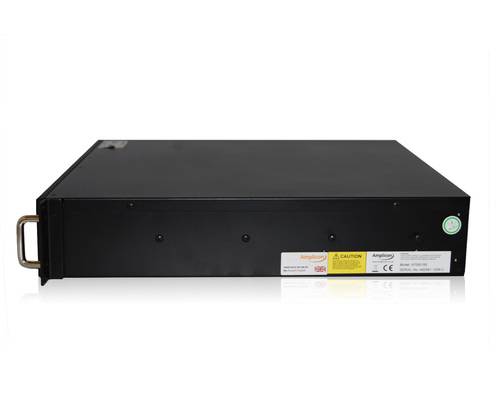

Amplicon Ventrix 2000 series

2U rackmount SBC based industrial computer. Core-i processing power.

PCI and PCI Express expansion options available
Designed for 24/7 operation
Expansion for 4 plug-in cards
Shallow depth - 450mm
3 year warranty package
5 to 15 year lifecycle

If you need an industrial rackmount computer with card expansion, but have a limited availability of rack space, the Amplicon Ventrix 2000 2U rackmount PC is the ideal solution for you.

The Ventrix 2000 series of industrial rackmount computers can accommodate up to 4 plug-in cards and support, PCI and PCI Express buses. Our system reliability is backed by our unmatched 3 year warranty, with the first year on-site.

Amplicon's systems are able to offer 5~15 year life cycle.

6th, 8th and 12th generation processor options available.

Memory: 2 GB; 4 GB; 8 GB
Chassis Size: 2 U
Chipset: Intel® Q67; Intel® R680E; Intel® B75; Intel® Q87; Intel® Q170; Intel® Q370
CPU: Core i3; Core i5; Core i7; Core I9
OS Support: Windows 11; Linux; VMWare ESXi; Windows 10; Windows 10 IoT; Windows 7; Windows Emb Std 7; Windows XP
Memory Type: DDR3; DDR4; DDR5
Expansion: PCI; PCIe; ISA; M.2
CPU Generation: 3rd (Ivy Bridge); 4th (Haswell); 6th (Skylake); 8th (Coffee Lake); 12th (Alder Lake)
Max Memory: 16 GB; 32 GB; 64 GB; 128 GB
Storage: 500GB HDD; 1TB HDD
CPU Cores (Physical): 4; 6; 8
Max Operating Temperature: 60 °C
Mounting: Rack
Chassis depth: Standard depth
Brand: Ventrix
