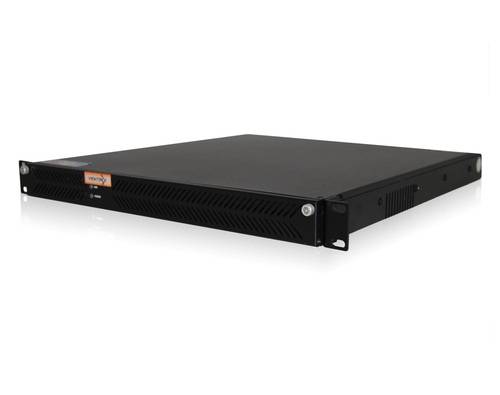

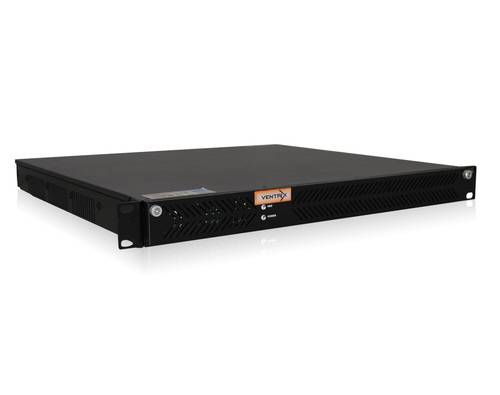

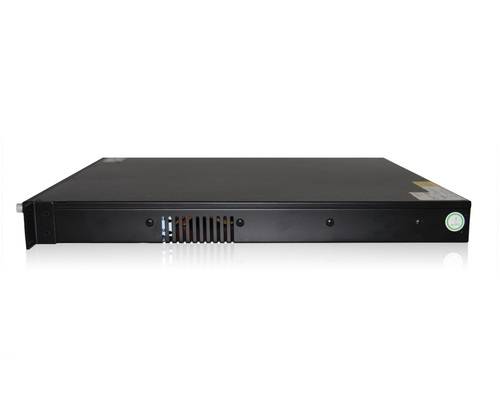

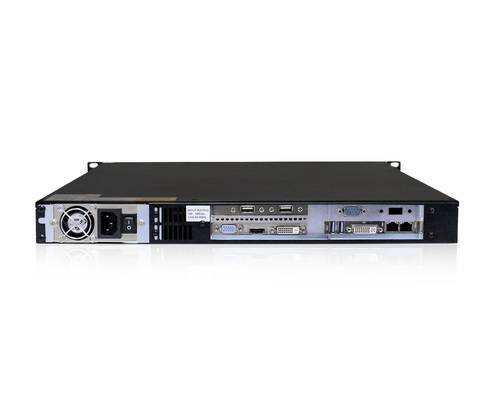

Amplicon Ventrix 1000 series

1U rackmount SBC based industrial computer. Core-i processing power.

Designed for 24/7 operation
Shallow depth - 450mm
Expansion for 2 plug-in cards
3 year warranty package
5 to 15 year lifecycle

Get a quote

The Amplicon Ventrix 1000 industrial rackmount computer is the ideal solution for many space critical applications.

This 1U industrial computer provides two plug-in card expansion slots and has a shallow depth which allows it to be easily fitted into a 600mm deep cabinet. These features have made this chassis one of our most popular products, especially within military COTS and transportation applications.

Amplicon's systems are able to offer 5~15 year life cycle.

6th, 8th and 12th generation processor options available.

Memory: 2 GB; 4 GB; 8 GB
Chassis Size: 1 U
CPU: Core i3; Core i5; Core i7; Core I9
OS Support: Windows 11; Linux; VMWare ESXi; Windows 10; Windows 10 IoT; Windows 7; Windows Emb Std 7; Windows XP
Expansion: PCI; PCIe; M.2
Chipset: Intel® R680E; Intel® B75; Intel® Q170; Intel® Q370
Memory Type: DDR3; DDR4; DDR5
CPU Generation: 3rd (Ivy Bridge); 6th (Skylake); 8th (Coffee Lake); 12th (Alder Lake)
Storage: 512GB SSD; 1TB HDD
Max Memory: 16 GB; 32 GB; 64 GB; 128 GB
CPU Cores (Physical): 4; 6; 8
Chassis depth: Standard depth
Max Operating Temperature: 60 °C
Mounting: Rack
Brand: Ventrix
