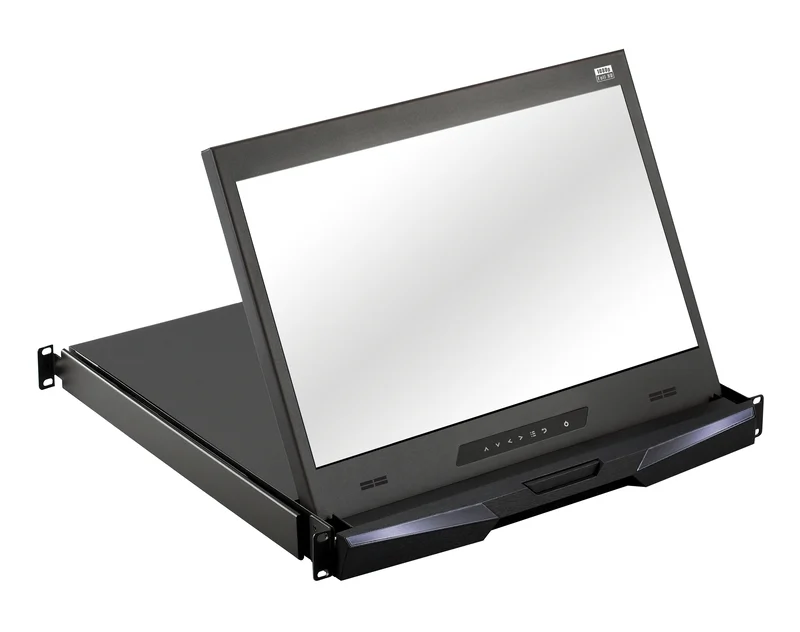

KwikDraw-A 17D - 96160716

KwikDraw-A 17D, Full HD slide out display, DVI/VGA/USB Touch, 1U rackmount

  • 1U 17" widescreen LCD drawer with DVI-D/VGA input
  • Support Full HD with 1080p resolution
  • Green LED-backlit panel technology
  • Enhanced aesthetics with moulded front panel and two point lock
  • Short depth design of 480mm ( 18.9" )

The Amplicon KwikDraw-A series offer a standalone rackmount keyboard when the full console is not required. This range is offered in two depths to provide maximum flexibility for any cabinet enclosure.

Designed with a 104-key keyboard (different layouts available), sleek touchpad mouse (trackerball option available), enhanced aesthetic mould front with a two point locking mechanism.

These units ship with a linking USB connection cable.

Mounting
Rack
Screen Count
1
Screen Size
17 inch
Resolution
High Def
KVM Option
No
Type
Screen Only
KwikDraw-A 17D Datasheet
Datasheet 127.57 KB
