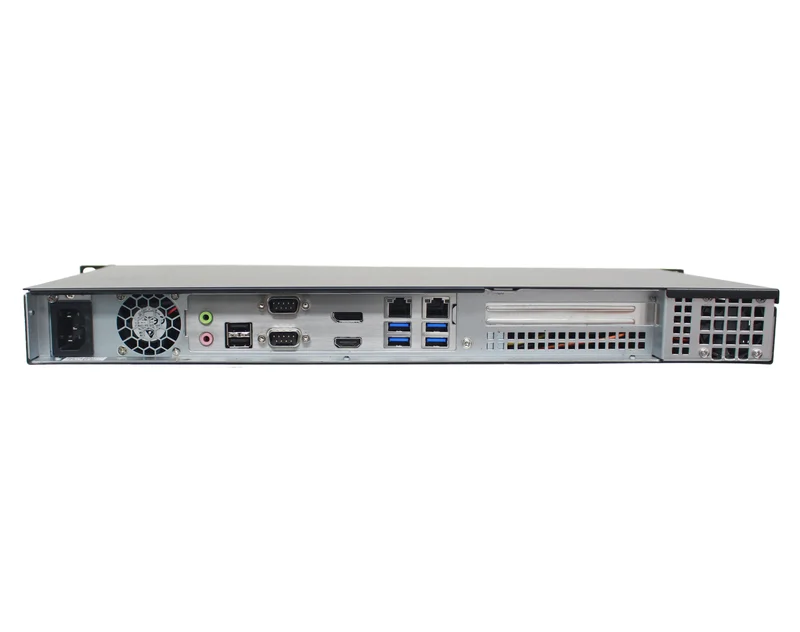

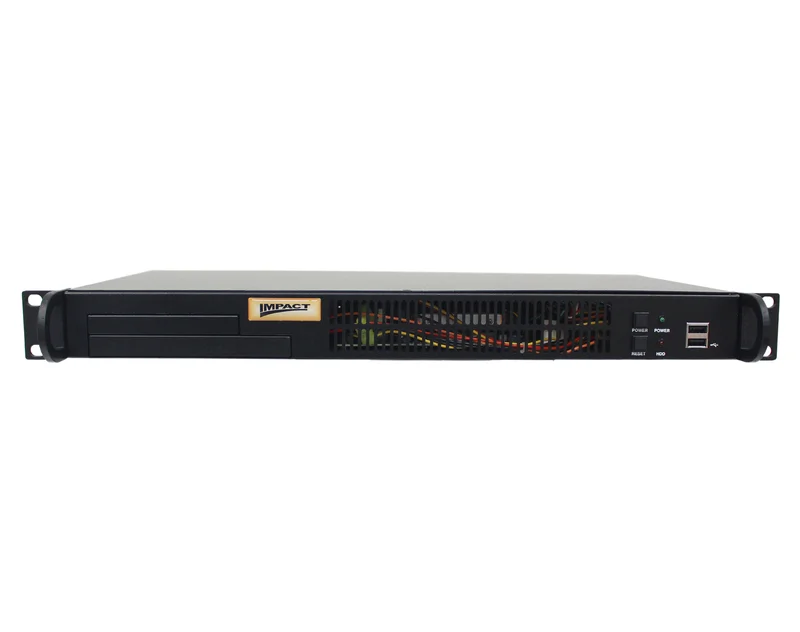

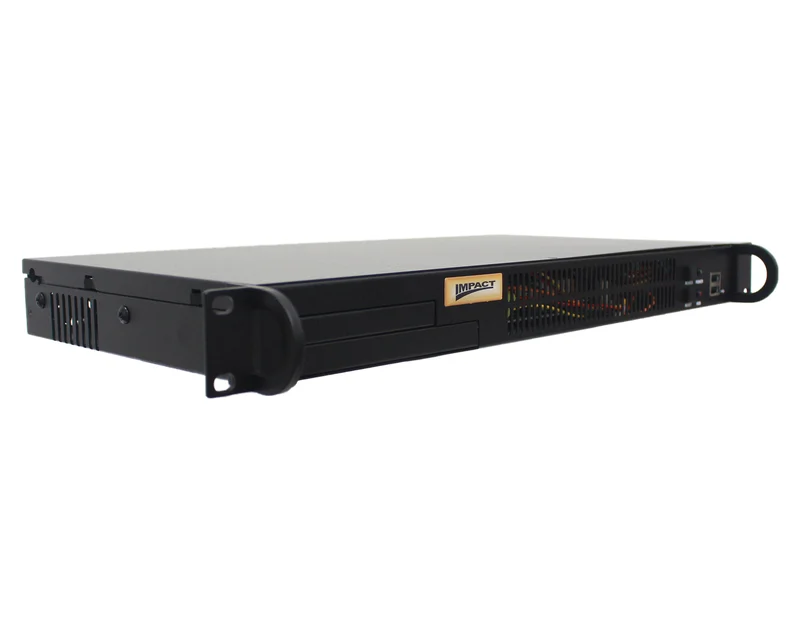

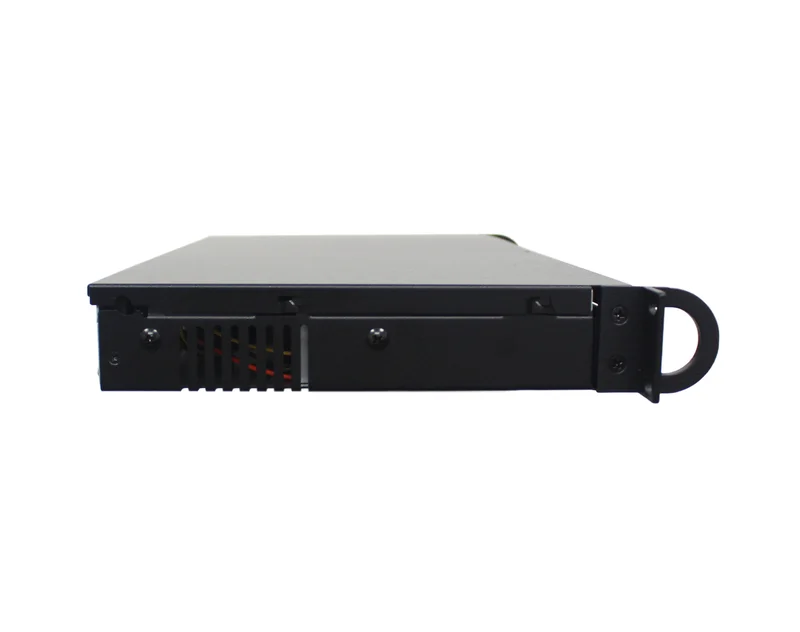

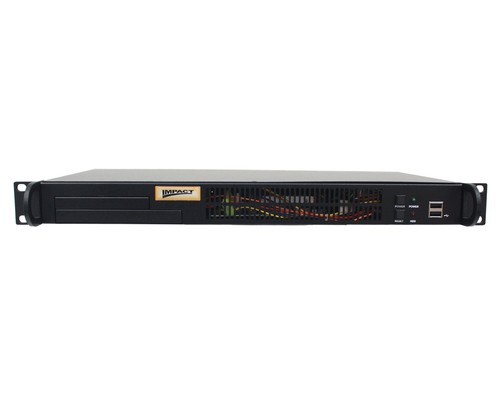

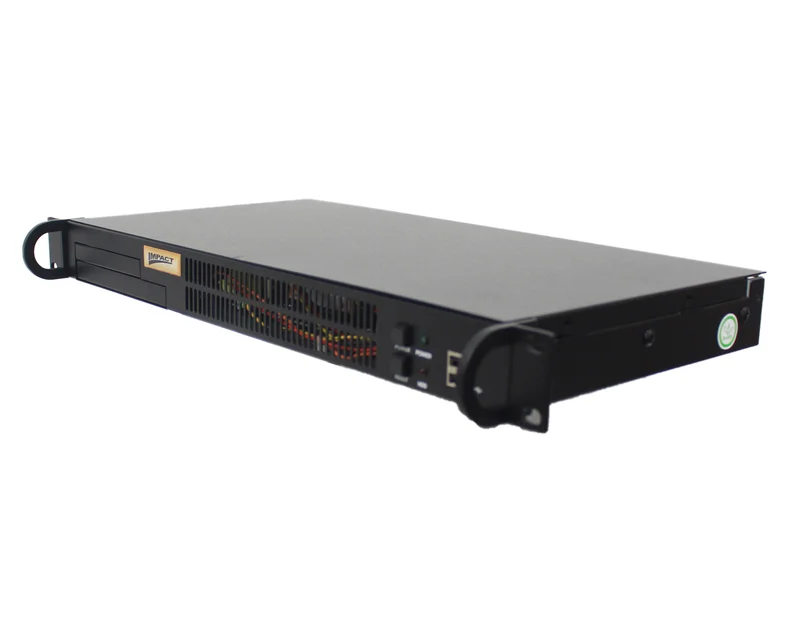

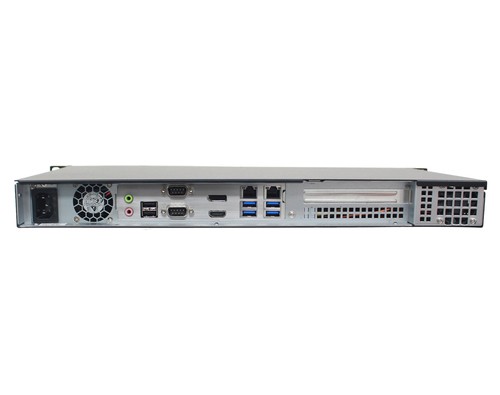

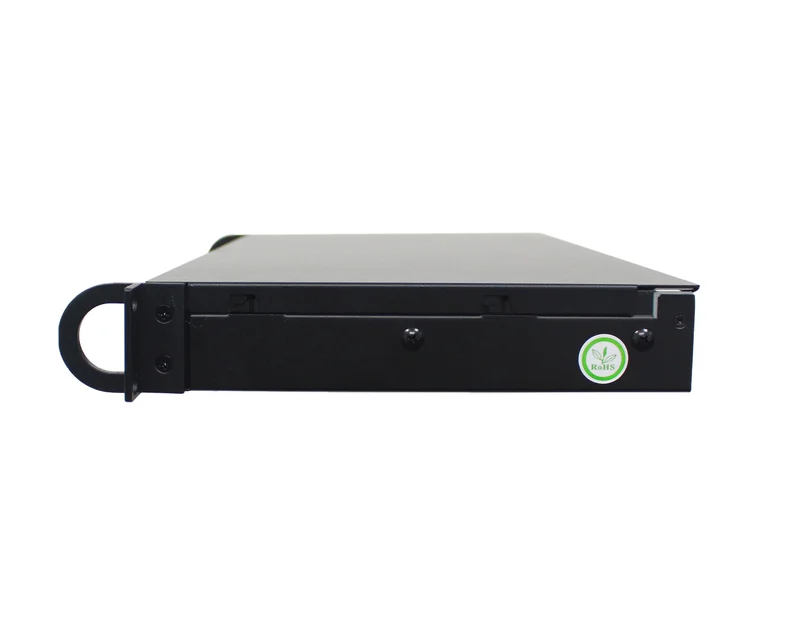

Amplicon Impact-R 1000 series

1U rackmount industrial motherboard based computer. Core-i processor power. Ultra short depth.

  • Ultra short depth (220mm)
  • 8th Generation iCore processor
  • Designed for harsh environments
  • Extensive burn-in factory testing
  • 3 year warranty
  • 10 to 15 year lifecycle

The Amplicon Impact-R 1000 series comprise of high density 1U rackmount industrial computer systems. Every available internal space has been utilised to maximise both the systems expansion and capacity.

With an ultra short 220mm depth, this industrial PC is ideal for applications requiring a short depth cabinet or where space is a premium allowing you to mount other devices behind the Impact-R 108x.

These shallow depth PC's feature integrated graphics and generous drive expansion. The Impact-R models are based on the Intel® chipset technology, providing integrated RAID 0, 1 and Remote Management (iAMT).

Like all our Impact-R systems, they can be customised to your specific requirements.

 Amplicon's systems are able to offer a 15 year life cycle based on the Intel IoTG roadmap.

Chassis Size
1 U
CPU
Core i5
Core i7
Memory
8 GB
OS Support
Linux
Windows 10
Expansion
PCIe
M.2
Storage
256GB M.2
Memory Type
DDR4
Chipset
Intel® Q370
CPU Generation
8th (Coffee Lake)
CPU Cores (Physical)
6
Max Memory
32 GB
Max Operating Temperature
60 °C
Mounting
Rack
Chassis depth
Shallow depth
Brand
Impact-R
Impact-R_1080
Datasheet 2.48 MB

Models available (2)
