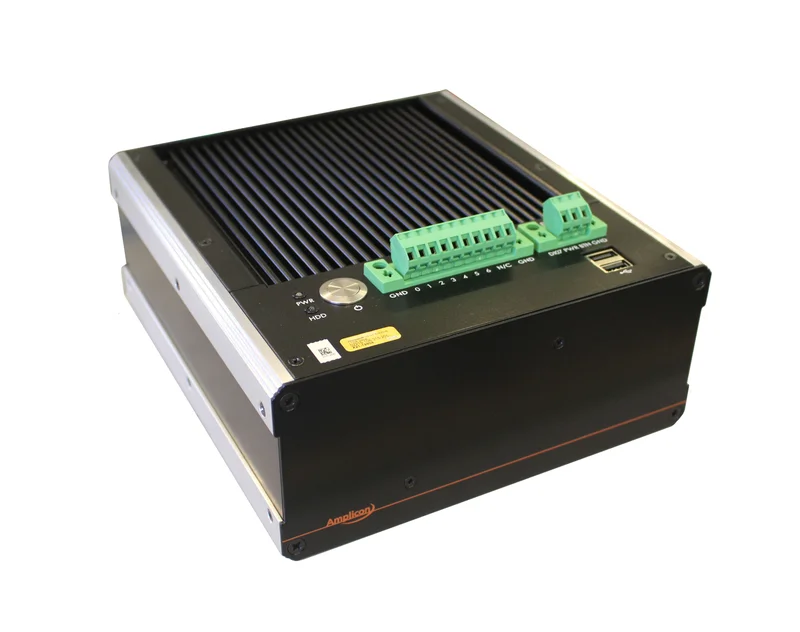

Amplicon Impact-E 280DIO series

Embedded PC powered by 8th or 9th Gen CPU with 5 serial ports, 8x DIO and remote On/Off capability, 0°C to 55°C

  • 8th Generation iCore processor
  • Supports up to 32GB DDR4 RAM
  • Supports USB 3.0 and SATA III
  • supports 2 independant displays (DP++/HDMI)
  • 8 DIO and Remote On/Off
  • DC powered by either screw terminal or jack

The Amplicon Impact-E 280-DIO series of fanless embedded PC features the Intel® 8th and 9th generation iCore processors, supported by high bandwidth DDR4 memory.

The Impact-E 280 embedded PC system has a high quantity of I/O broken out to the rear as well as eight Digital I/O broken out to the lid. Designed with the ability to be installed deep inside equipement the E280-DIO has a remote On/Off capability.

Being of a compact design and weighing less than 5kg, this unit is ideal for installations where space is at a premium. This compact system allows expansion for additional solid state or mechanical hard drives mPCIe and M.2 modules.

Learn more about the new Impact-E range from Amplicon.

Learn more about the Amplicon Industrial Embedded PC range.

CPU
Core i5
Memory
16 GB
OS Support
Linux
Windows 10
Windows 10 IoT
Expansion
M.2
Storage
128GB SSD
Memory Type
DDR4
CPU Generation
8th (Coffee Lake)
CPU Cores (Physical)
6
Max Memory
32 GB
Mounting
Wall
Brand
Impact-E
impact-E_280DIO
Datasheet 5.31 MB
Impact-E_D_T_P_roadmap
Roadmaps 3.36 MB

Models available (1)
