Impact-D 101AL-A - 97220646
Intel® ATOM E3950 CPU, 4GB DDR3L, 64GB Industrial SSD
- Atom™ processor E3900 product family
- Wi-Fi connectivity
- Supports up to 8GB DDR3L RAM
- Supports USB 3.0 and SATA III
- DC powered (via screw terminal)
- Windows 10 and Ubuntu 20.04 support
- -40°C to +75°C Operating temperature

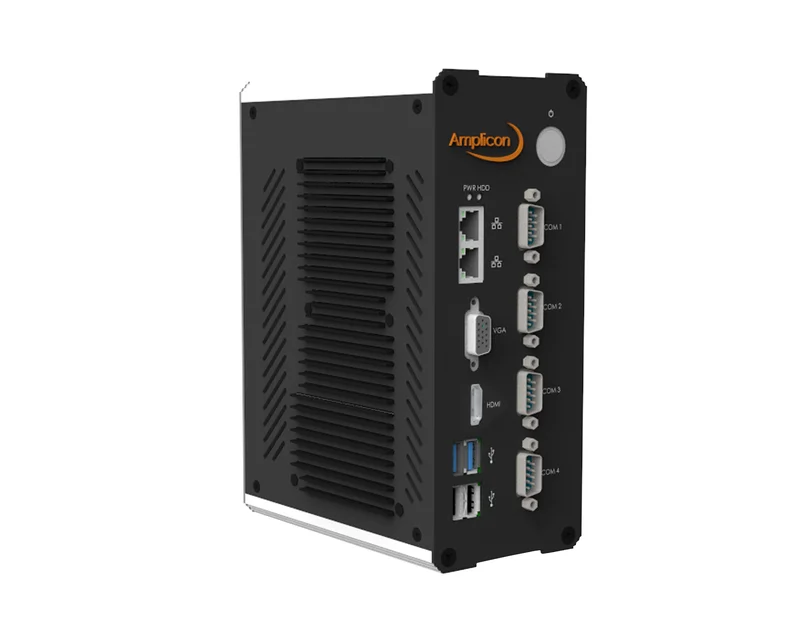

The Amplicon Impact-D 100AL-A fanless embedded PC features the Intel® ATOM™ E3900 generation processors, supported by high bandwidth DDR3L memory, and is a perfect solution for a DIN Rail PC.
With an extremely compact design weighing 1.3kg, this unit is ideal for installations where space is at a premium. The tiny footprint still allows for rich I/O along with added support for Wi-Fi connectivity. All systems come with free software for remote access, monitoring and control.
The Apollo Lake processors provide 4K immersive graphics and fast video acceleration, making the Impact-D 100AL an exceptional solution for the most demanding media output tasks.
The Impact-D 100AL-A embedded PC system is suited to applications in markets such as transportation, security and automation.
- CPU
- ATOM®
- Memory
- 4 GB
- OS Support
- Linux
- Windows 10
- Windows 10 IoT
- Expansion
- M.2
- Storage
- 64GB SSD
- Memory Type
- DDR3
- CPU Generation
- Apollo Lake
- CPU Cores (Physical)
- 4
- Max Memory
- 8 GB
- Mounting
- Wall
- DIN Rail
- Brand
- Impact-D
- Impact-D 101AL-A Datasheet
- Datasheet 3.24 MB
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
