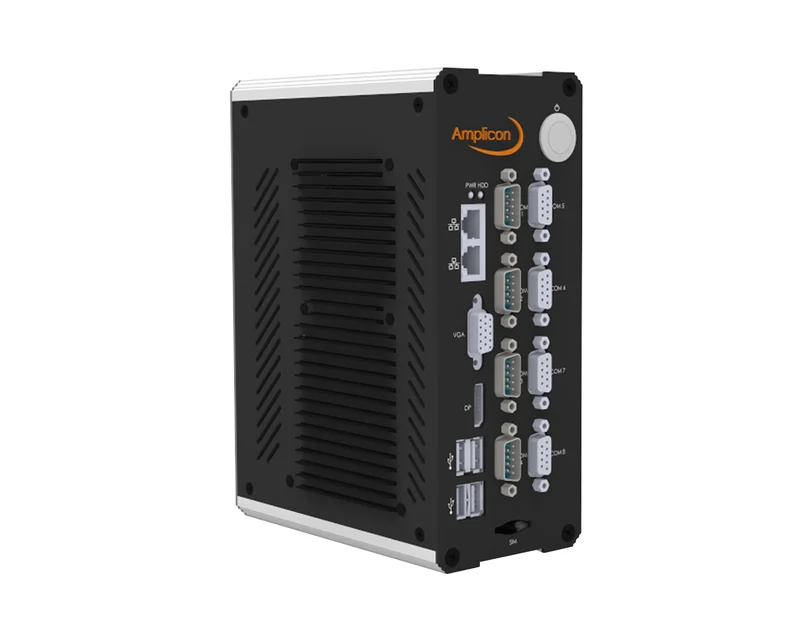

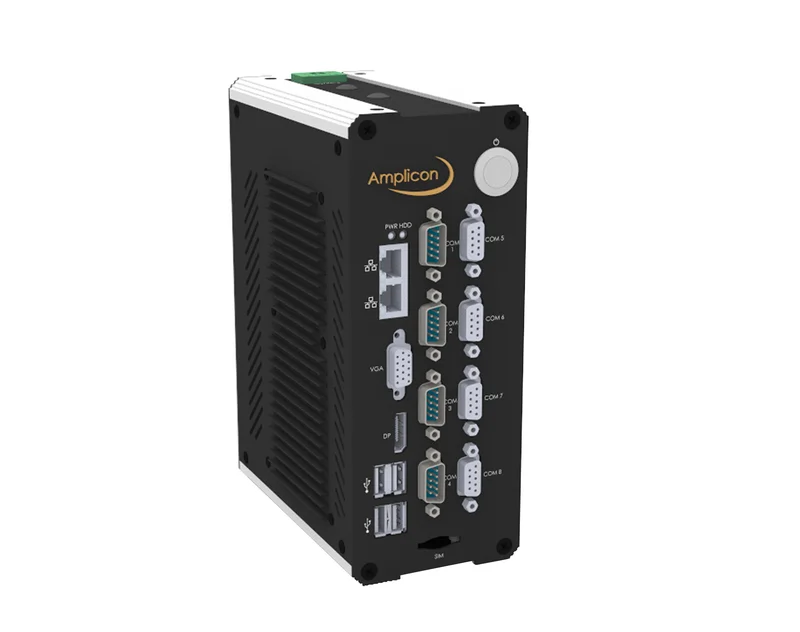

Impact-D 102A - 97210565
Intel® ATOM E3845 CPU, 4GB DDR3L, 64GB Industrial SSD, 4 USB, 2 LAN, 8 serial ports
- 0 to 85°C operating temperature range
- Intel Atom Quad-core E3845 processor
- Optional Cellular/Wi-Fi
- Supports up to 8GB DDR3L RAM
- Supports USB 3.0 and SATA III
- Quick remove full size SIM card
- Support for WISE-DeviceOn IoT management
The Amplicon Impact-D 100A fanless embedded PC features the Intel® ATOM™ E3800 generation processors, supported by high bandwidth DDR3L 1333MHz memory, and is a perfect solution for a DIN Rail PC.
With three different varients all rich in I/O along with added support for cellular and Wi-Fi connectivity these units are ideal for a range of applications. All systems come with free software for remote access, monitoring and control.
The Impact-D 100A embedded PC system is suited to applications in markets such as transportation, security and automation.
- CPU
- ATOM®
- Memory
- 4 GB
- OS Support
- Linux
- Windows 10
- Windows 7
- Windows 10 IoT
- Expansion
- mPCIe
- Storage
- 64GB SSD
- Memory Type
- DDR3
- CPU Generation
- Bay Trail
- CPU Cores (Physical)
- 4
- Max Memory
- 8 GB
- Mounting
- Wall
- DIN Rail
- Brand
- Impact-D
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
- Impact-D 102A Datasheet
- Datasheet 3.09 MB
