Amplicon Impact 3000 series
3U rackmount Intel desktop motherboard based computer. Core-i processing power. Low cost
- 3 x PCIe x16 expansion (1 x 16 REV.4.0, 1 x 4 Rev.3.0, 1 x 1 REV.3.0)
- Gigabit Ethernet LAN port
- 8 x USB ports
- 4 x SATA ports (RAID 0/1/5/10)
- Chassis can house up to 5 x 3.5" HDDs

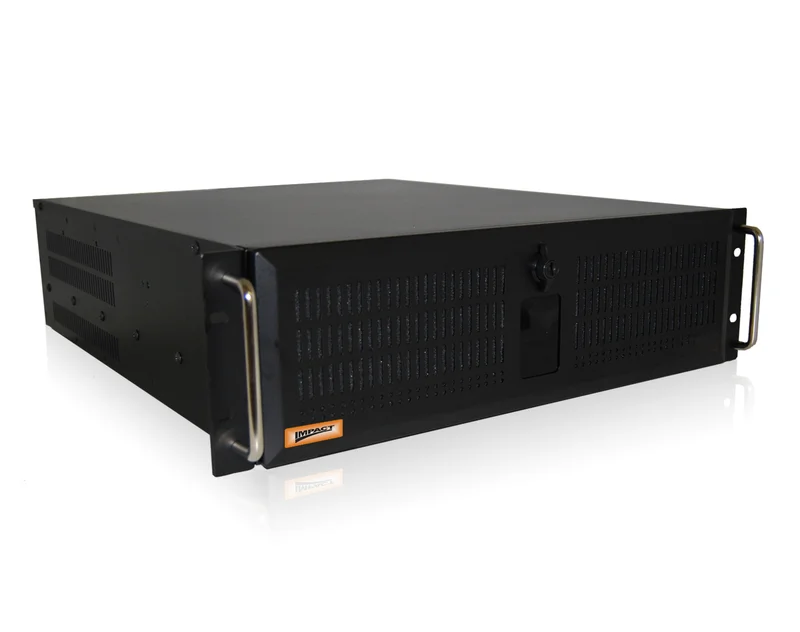

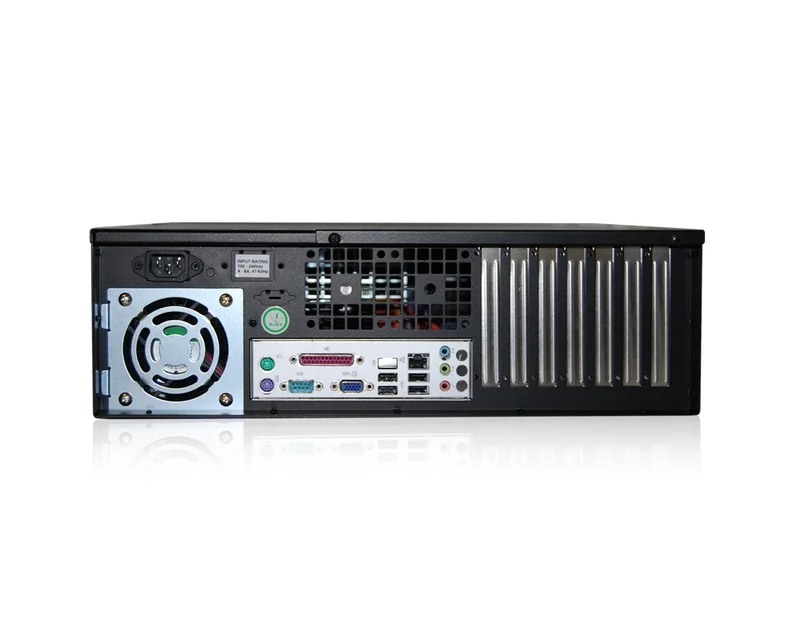

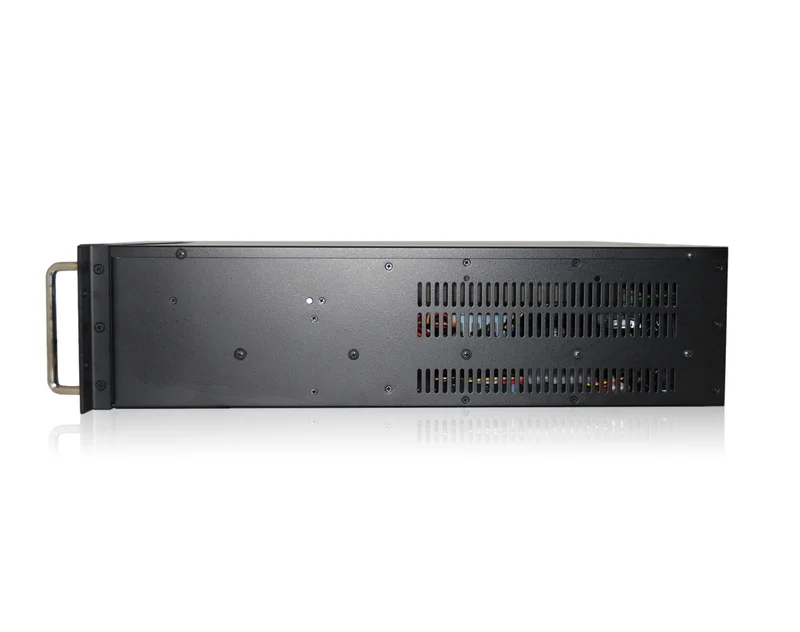

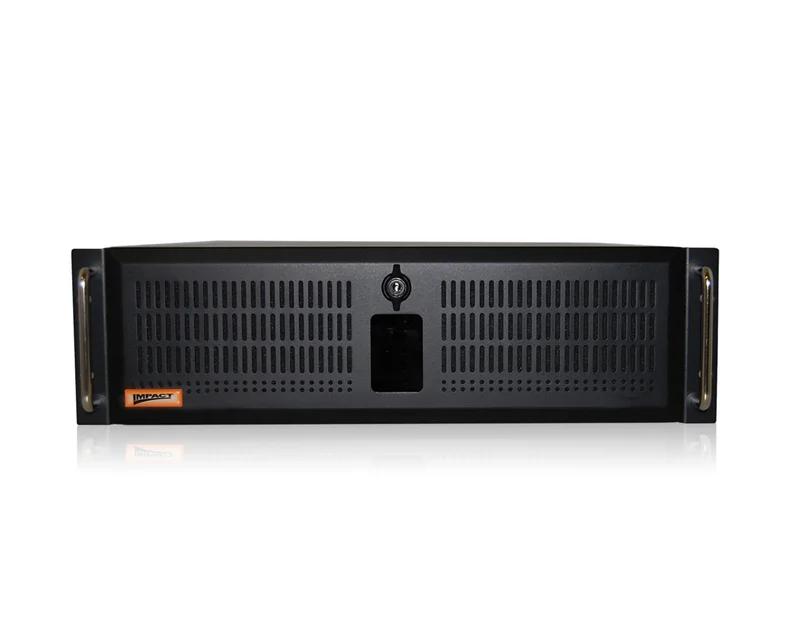

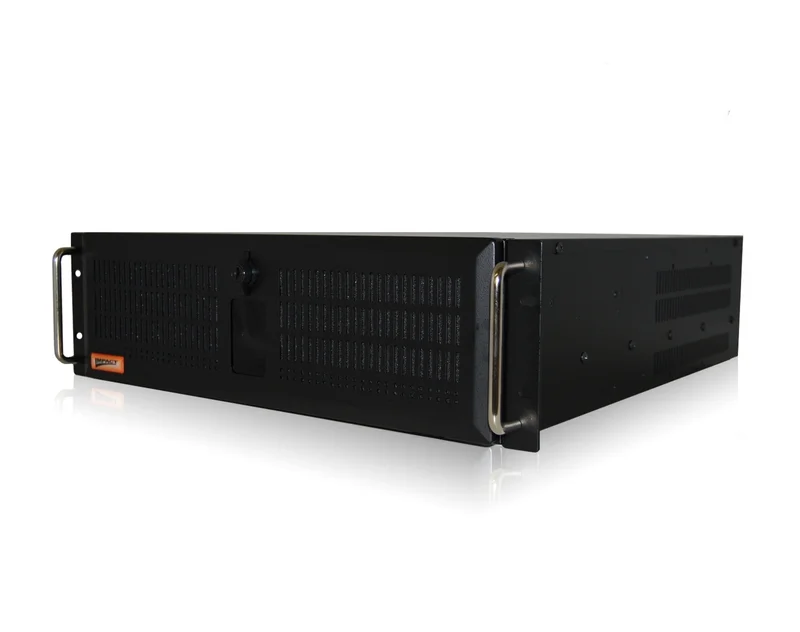

The Amplicon Impact 3000 series comprise 3U rackmount computers with Intel motherboards and industrial grade components including the power supply and heavy-duty steel chassis.
The Impact 3000 systems support up to 4 x 3.5" HDDs. As with all our other industrial computers, they can be tailored to suit customer requirements.
- Chassis Size
- 3 U
- Chipset
- Intel® B660
- Memory Type
- DDR4
- OS Support
- Windows 11
- Linux
- Windows 10
- Windows 10 IoT
- CPU
- Core i5
- Core i7
- Core I9
- Memory
- 8 GB
- Max Operating Temperature
- 45 °C
- CPU Generation
- 12th (Alder Lake)
- Mounting
- Rack
- Expansion
- PCIe
- M.2
- Storage
- 128GB SSD
- CPU Cores (Physical)
- 6
- 8
- Chassis depth
- Standard depth
- Brand
- Impact
- Impact_3120
- Datasheet 1.96 MB
- Amplicon-2U_to_4U-slide-rail-datasheet
- Datasheet 571.48 KB
Models available (3)
Amplicon Impact 3123
Code 97221692
3PCIe x16 (x16,x4,x1), Intel® Core i5-12500E AL (6C 12T)
Amplicon Impact 3124
Code 97221693
3PCIe x16 (x16,x4,x1), Intel® Core i7-12700E AL (8P/4E 20T)
Amplicon Impact 3125
Code 97221694
3PCIe x16 (x16,x4,x1), Intel® Core i9-12900E AL (8P/8E 24T)
