Ventrix 1084-E1.0 - 57190093
Ventrix 1084-E1.0 - 1x PCIe, 3.2GHz Core i7-8700 (6C/12T), Industrial Computer BaseKit Iss D
- Designed for 24/7 operation
- Shallow depth - 450mm
- Expansion for 2 plug-in cards
- 3 year warranty package
- 5 to 15 year lifecycle

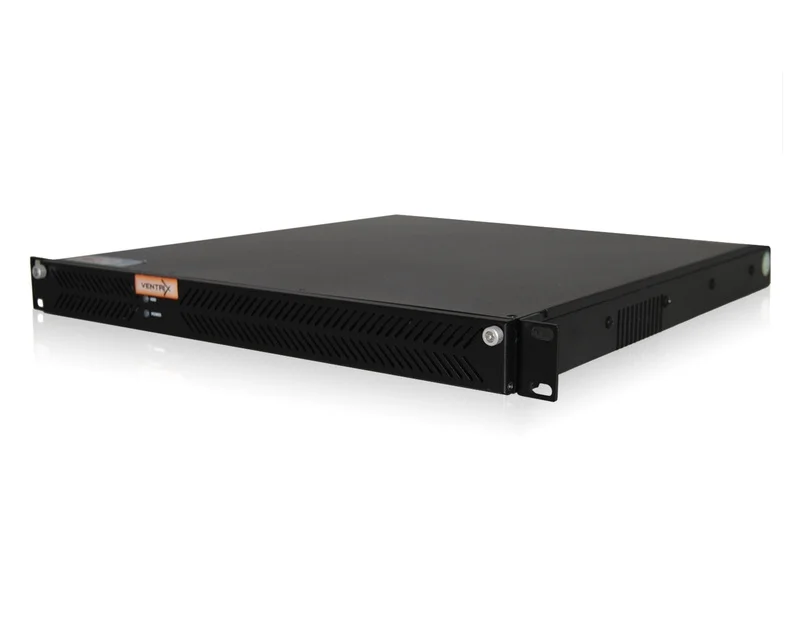

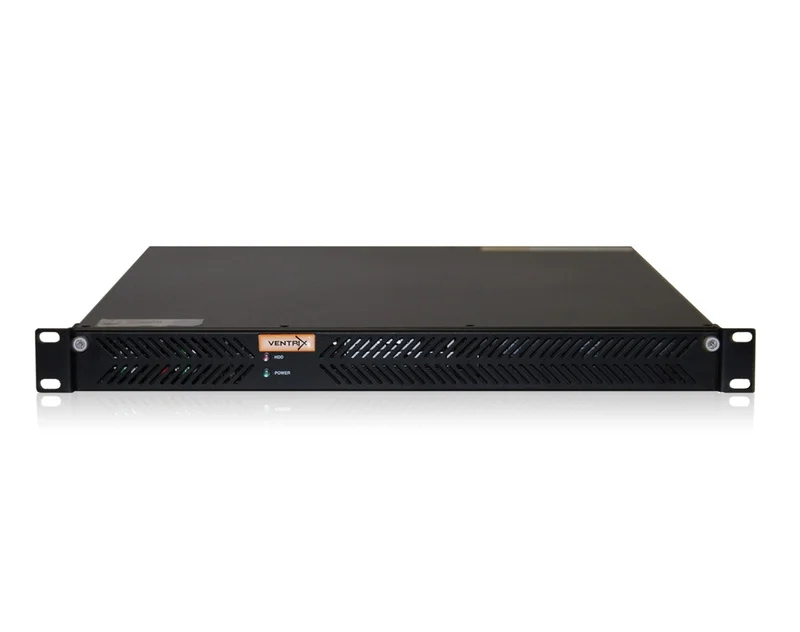

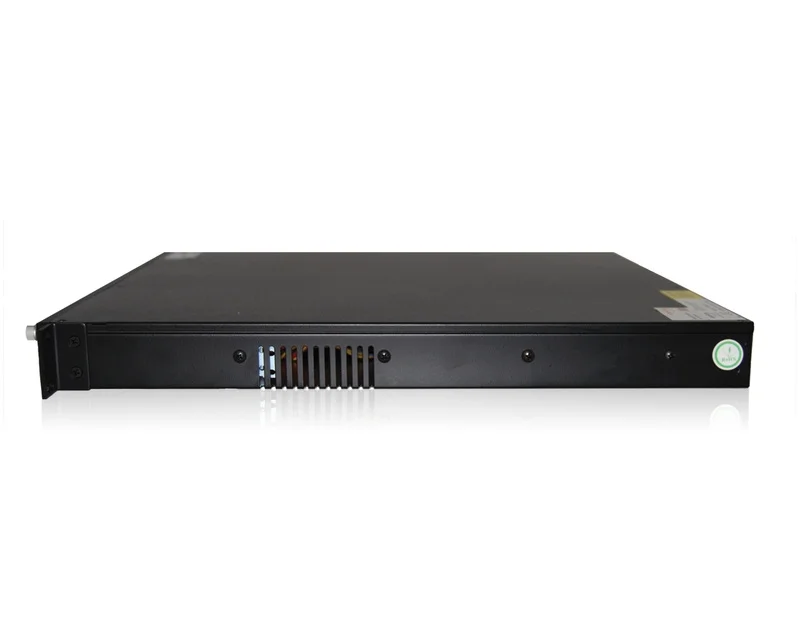

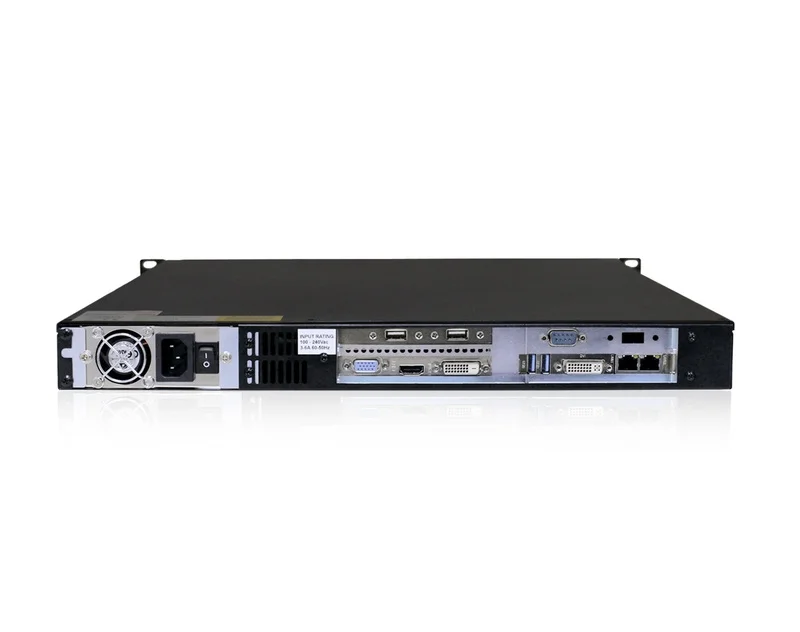

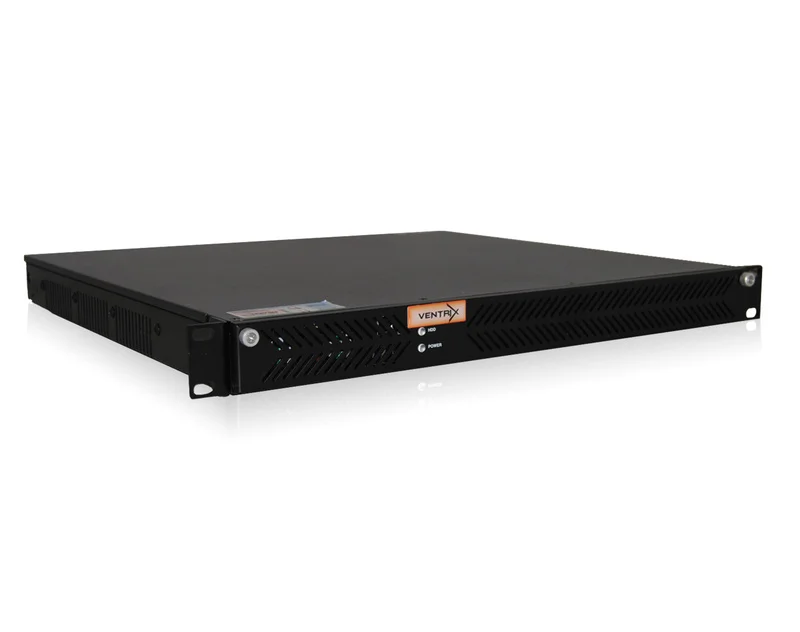

The Amplicon Ventrix 1000 industrial rackmount computer is the ideal solution for many space critical applications.
This 1U industrial computer provides two plug-in card expansion slots and has a shallow depth which allows it to be easily fitted into a 600mm deep cabinet. These features have made this chassis one of our most popular products, especially within military COTS and transportation applications.
Amplicon's systems are able to offer 5~15 year life cycle.
6th, 8th and 12th generation processor options available.
- Chassis Size
- 1 U
- CPU
- Core i7
- OS Support
- Windows 11
- Linux
- Windows 10
- Windows 10 IoT
- Memory
- 4 GB
- Expansion
- M.2
- PCIe
- Storage
- 1TB HDD
- Memory Type
- DDR4
- Chipset
- Intel® Q370
- CPU Generation
- 8th (Coffee Lake)
- Chassis depth
- Standard depth
- CPU Cores (Physical)
- 6
- Max Operating Temperature
- 60 °C
- Mounting
- Rack
- Max Memory
- 64 GB
- Brand
- Ventrix
- Ventrix 1084-E1.0 Datasheet
- Datasheet 438.34 KB
- ventrix-roadmap
- Roadmaps 520.09 KB
- Ventrix 1084-E1.0 Datasheet
- Datasheet 235.00 KB
