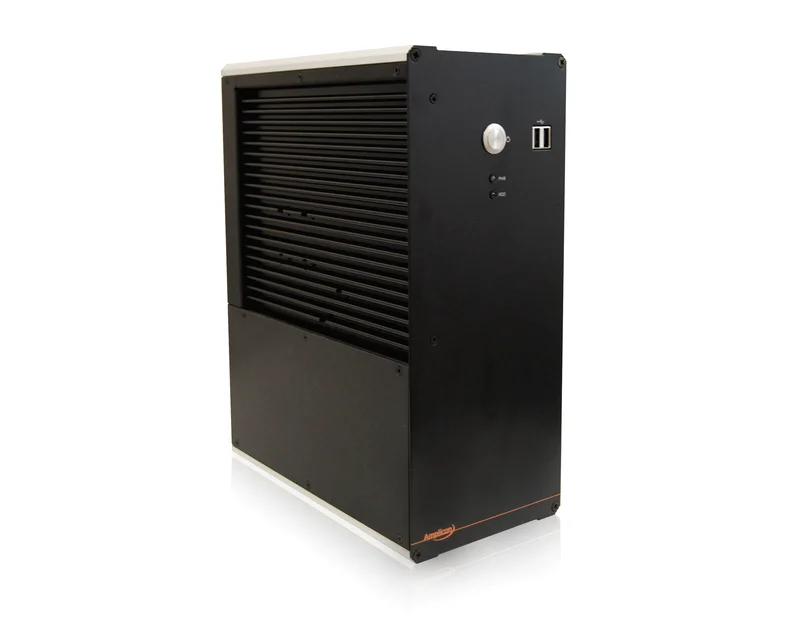

Amplicon Impact-T 480 series
Embedded Tower PC powered with Intel 8th gen iCore processor, 0°C to 55°C
- 8th Generation iCore processor
- Supports up to 32GB DDR4 RAM
- Supports USB 3.0 and SATA III (JBOD, RAID 1/0)
- Supports 2 independant displays (DP++)
- Multiple expansion options
- DC powered (via screw terminal)
The Amplicon Impact-T 480 fanless embedded PC is available with the Intel® Core™ 8th generation of processors. Memory support includes high bandwidth DDR4 memory.
With 4 expansion slots, this system builds on the reliability and stability of the compact Impact-E 280 and 380 but in a rugged tower form factor. The Impact-T 480 supports 2 x 2.5" HDD/SSD configured as RAID 1, 0, or as single drives (JBOD). This unit also offers optional expansion for two M.2 modules, giving you the option of wireless connectivity.
The Impact-T 480 embedded PC system is suited to applications in various markets such as transportation, security and automation.
- CPU
- Core i5
- Memory
- 4 GB
- OS Support
- Linux
- Windows 10
- Windows 10 IoT
- Expansion
- PCI
- PCIe
- M.2
- Storage
- 128GB SSD
- CPU Generation
- 8th (Coffee Lake)
- CPU Cores (Physical)
- 6
- Max Memory
- 32 GB
- Mounting
- Wall
- Brand
- Impact-T
- Impact-T_480
- Datasheet 4.24 MB
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
Models available (2)
Impact-T 481
Code 97200121
2 x PCIe, 2 x PCI expansion, 8500T, 4GB DDR4, 128GB SSD Basekit Iss A
Impact-T 482
Code 97200122
1 x PCIe, 3 x PCI expansion, 8500T, 4GB DDR4, 128GB SSD Basekit Iss A
