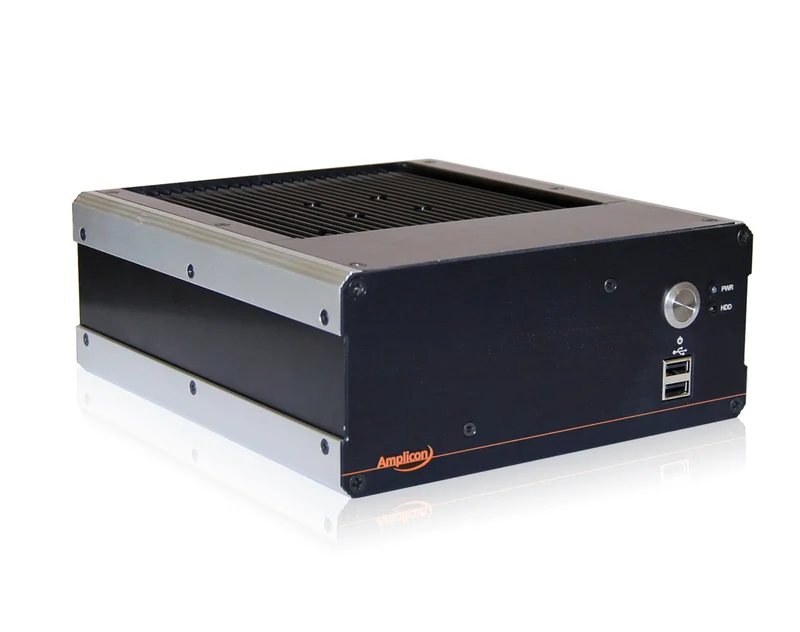

Amplicon Impact-E 280A
Embedded PC powered by Intel 8th or 9th gen iCore processors, 0°C to 55°C
- 8th or 9th Generation iCore processor
- Cellular and Wi-Fi connectivity
- Supports up to 64GB DDR4 RAM
- Supports 3 independant displays
- 2x2.5" drive bays RAID 0/1
- DC powered (via screw terminal)
- 8 bit GPIO
The Amplicon Impact-E 280A series of fanless embedded PC support the Intel® 8th or 9th generation iCore processors, offering up to 64GB of high bandwidth DDR4 memory.
Being of a compact design and weighing less than 5kg, this unit is ideal for installations where space is at a premium. This compact system allows expansion for additional solid state or mechanical hard drives and M.2 modules.
The Impact-E 280A embedded PC system has a wide range of I/O including 8 bit GPIO as well as options for cellular and WI-FI making it well suited to applications in various markets such as data acquisition, transportation, security and automation.
- CPU
- Core i5
- Memory
- 4 GB
- OS Support
- Linux
- Windows 10
- Windows 10 IoT
- Expansion
- M.2
- Storage
- 128GB SSD
- Memory Type
- DDR4
- CPU Cores (Physical)
- 6
- CPU Generation
- 8th (Coffee Lake)
- 9th (Coffee Lake refresh)
- Max Memory
- 64 GB
- Mounting
- Wall
- Brand
- Impact-E
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
- Impact-E_280A
- Datasheet 407.10 KB
Models available (2)
Impact-E 280A
Code 97220843
Fanless embedded PC, Intel Coffee Lake - 8th gen processor, i5-8500T, dual serial ports and 8-bit GPIO
Impact-E 281A
Code 97220864
Fanless embedded PC, Intel Coffee Lake - 9th gen processor, i5-9500TE, dual serial ports and 8-bit GPIO
