Impact-D 101 - 97150452
Intel® ATOM E3845 CPU, 2GB DDR3L, 32GB Industrial SSD Base-Kit - Iss J
- Atom™ processor E3800 product family
- Supports up to 8GB DDR3L RAM
- Supports USB 3.0 and SATA III
- Quick remove full size SIM card
- DC powered (via screw terminal)
- QNX Neutrino RTOS 6.6 Support

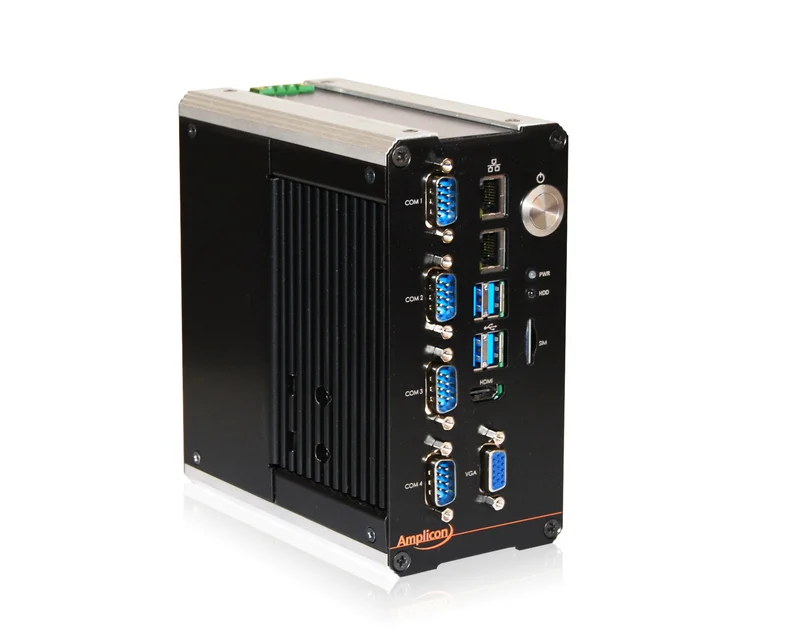

The Amplicon Impact-D 100 fanless embedded PC features the Intel® ATOM™ E3800 generation processors, supported by high bandwidth DDR3L 1333MHz memory, and is a perfect solution for a DIN Rail PC.
With an extremely compact design weighing less than 1.2kg, this unit is ideal for installations where space is at a premium. The tiny footprint still allows for rich I/O along with added support for cellular and Wi-Fi connectivity.
The Impact-D 100 embedded PC system is suited to applications in markets such as transportation, security and automation.
- CPU
- ATOM®
- Memory
- 2 GB
- OS Support
- Windows 7
- Windows Emb Std 7
- Windows 10
- Windows 10 IoT
- Linux
- Expansion
- mPCIe
- Storage
- 32GB SSD
- Memory Type
- DDR3
- CPU Generation
- Bay Trail
- CPU Cores (Physical)
- 4
- Max Memory
- 8 GB
- Mounting
- Wall
- DIN Rail
- Brand
- Impact-D
- Impact-D 101 Datasheet
- Datasheet 1.19 MB
- Impact-E_D_T_P_roadmap
- Roadmaps 3.36 MB
| Code: 91140892 | S/W - Windows Embedded 7 Standard P license (x86/x64) |
| Code: 816096 |
Impact-D 100 Wall Mount Bracket
Impact-D 100 Wall Mount Bracket DWG B816096 ISS A |
